Coffee Bean Bag Packaging Machine Animal Pet Floating Sinking Feed Food Processing Rotary Doypack Packaging Machine

1 Set

FOB, CIF, CFR, EXW

LC, T/T, D/P, PayPal, Western Union

Qing Dao

Qingdao Port

Specifications

Coffee Bean Bag Packaging Machine

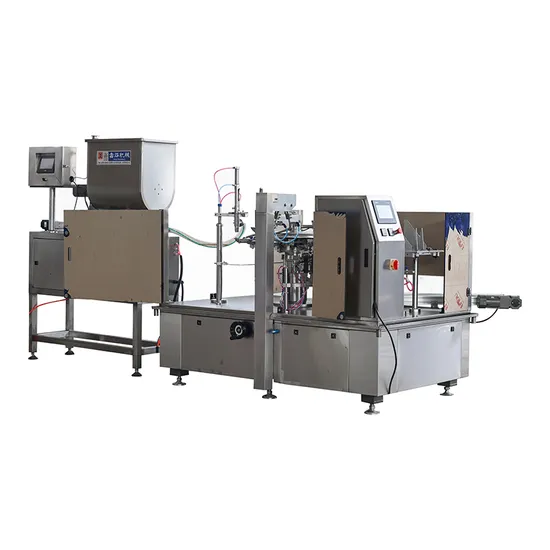

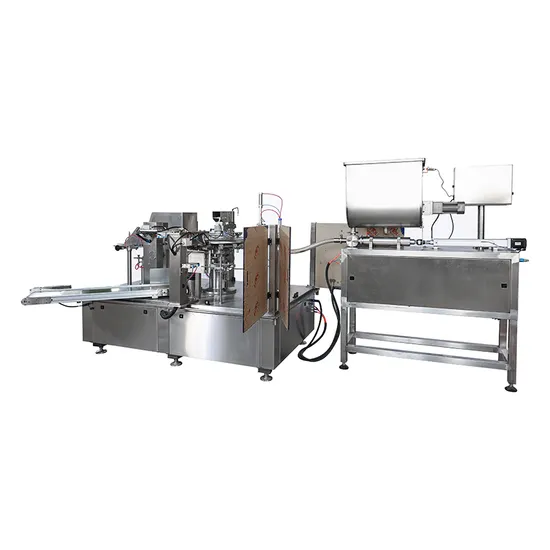

The Coffee Bean Bag Packaging Machine Animal Pet Floating Sinking Feed Food Processing Rotary Doypack Packaging Machine is a revolutionary fully automatic bag-feeding packaging machine engineered to bring intelligent packaging solutions across diverse industries. Elevate your production process with superb automation, accurate metering, and seamless high-speed operation.

1. Product Overview

The fully automatic bag-feeding packaging machine is an efficient and intelligent packaging equipment designed for pre-made bag packaging and is suitable for many industries such as food, medicine, chemical industry, daily chemical industry, pet food, agriculture, etc. It can achieve accurate metering, fast filling, sealing and finished product output through automated processes, greatly improving production efficiency and packaging quality.

2. Core Uses

Applicable Industries

Food: condiments (salt, sugar, chicken essence), frozen foods, nuts, pet food, tea, coffee powder, etc.

Medicine: granular/powdered medicines, Chinese herbal medicines, health products.

Industrial: chemical raw materials, seeds, fertilizers, detergents, daily chemical products.

Packaging Supports a variety of bag types: stand-up bags, zipper bags, four-side sealed bags, back-sealed bags, etc.

Adapts to different materials: composite film, aluminum foil, PE/PP plastics, etc.

3. Core Functions

Full process automation

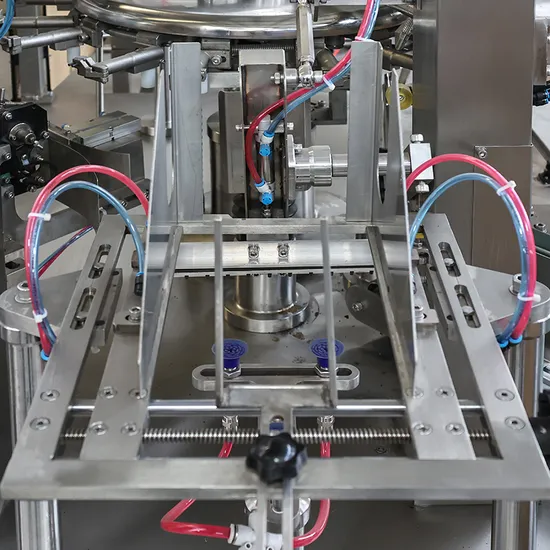

Automatic bagging: The robot can accurately take and open bags, and is compatible with a variety of bag types.

Measuring and filling: Screw/weighing/volumetric measurement, accuracy ±0.5%-1%.You can choose according to the nature of the material: bowl-type feeding, liquid feeding, multi-functional combination weighing, etc. Suitable for liquids, splits, solids, semi-fluids, etc.

Vacuuming and filling: Nitrogen replacement or vacuum sealing can be selected to extend the shelf life. Customizable: vacuuming, nitrogen filling, conventional, etc.

Heat sealing plasticity: Multi-pass sealing (back sealing, corner sealing, etc.) special-shaped bags, drawstrings, tear bags, vacuum bags, inflatable bags, etc. Heat sealing and aesthetic treatment can be performed according to customer requirements

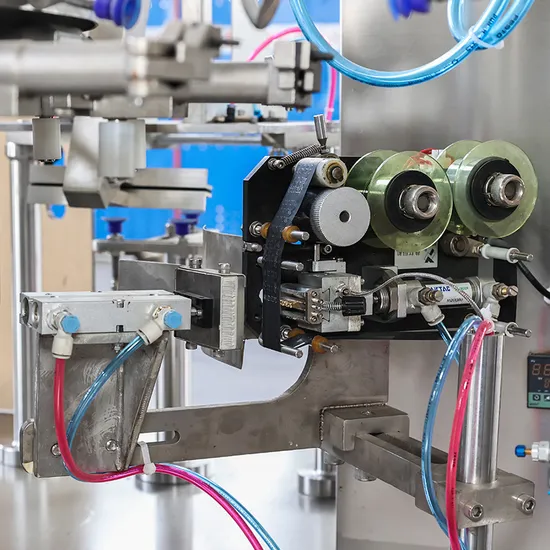

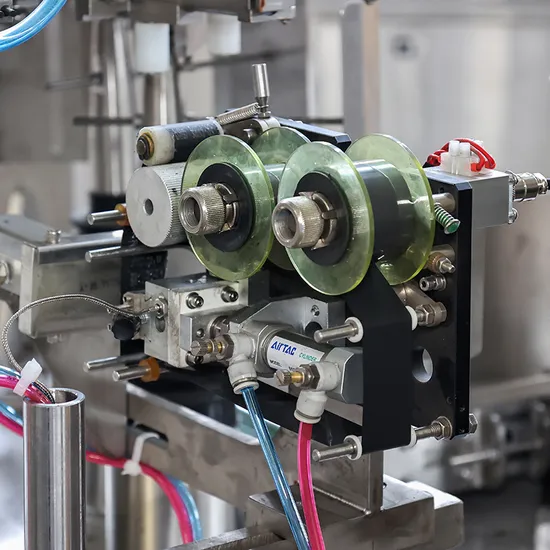

Heat seal coding

Feeder Selection

Powder feeding combination: Used for feeding various powders, can be weighed and measured, etc., the measurement can be based on customer requirements

Bowl and bucket feeding combination: Can be used for quantitative feeding of bulk materials, granular materials and solid materials, etc. The feeding speed can be controlled by the touch screen

Combined weighing unloading method: Can be used for bulk materials, inflatable packaging materials, etc.

Fluid feeding combination: Can be used to feed viscous and fluid materials such as liquids, colloids, and pastes. It can be quantitatively and timing based on usage requirements and controlled through a touch screen

Packaging Bags Application

Such as liquids such as ketchup, seasoning sauce, fruit sauce, chili oil, honey, shampoo, shower gel, bio-ice bags, etc.; block and granular forms such as potato chips, dried fruits, melon seeds, peanuts, etc.; powder forms such as additives, milk powder, seasonings, etc.; fresh vacuum packaging such as squid, duck eggs, chicken eggs, etc.

Product Parameters

Device Name: Bag Packaging Machine

Device Model: XY8-200

Power (kw): 4.5

Packaging speed: 15-40 bags/minute

Material: SUS304

Packing size: Width 80-200mm, Length 100*300mm

Air pressure: 0.6-0.8Mpa

Device Model: XY8-300

Power (kw): 4.5

Packaging speed: 15-40 bags/minute

Material: SUS304

Packing size: Width 180-300mm, Length 100-400mm

Air pressure: 0.6-0.8Mpa

Device Model: XYZK-120

Power (kw): 9.8kw

Packaging speed: 45-60 packs/min

Material: SUS304

Packing size: Width 60-120mm, Length 80-150mm

Air pressure: 0.6-0.8Mpa

Device Model: XYZK-160

Power (kw): 9.8kw

Packaging speed: 45-60 packs/min

Material: SUS304

Packing size: Width 80-160mm, Length 80-210mm

Air pressure: 0.6-0.8Mpa

After Sales Service

• Provide relevant materials and drawings required by Party A.
• Provide small-scale process experiment, in order to select the best process and equipment.
• Assist Party A in equipment selection.
• Design equipment installation methods according to room drawings provided by Party A.
• Engineers guide installation by video. Customer personnel receive training to operate and maintain equipment independently.
• Provide relevant information required.
• Warranty period of 1 year (except for wearing parts).
• Immediate response to technical problems informed by customer.
• If equipment failure occurs due to machine defect during warranty, parts are replaced free of charge within 30 days upon notification.
• Warranty exclusions: misuse, unauthorized disassembly, software/hardware damage, unauthorized part usage, force majeure.
• Out-of-warranty repair available with service and replacement part costs.
• Spare parts ensured with timely preferential supply.
• Regular free return visits.
• Long-term technical support and consultation available. Technical improvements notified to the buyer.
