Pet Cat Dog Feed Food Processing Machine Line
1 Piece
$32,0001 Piece
$11,000Product information
High-quality Pet Cat Dog Feed Food Processing Machine Line supplied by Chongqing Qiaoxing Machinery & Equipment Company. Bulk wholesale pricing ranges from $11,000 to $32,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Minimum Order Quantity:
1 Piece
Specification:
CE certificate
Place Of Origin:
Chongqing, China
Trade Term:
FOB, CFR, CIF
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Related products for All Products
Specifications
Minimum Order Quantity:
1 Piece
Specification:
CE certificate
Place Of Origin:
Chongqing, China
Trade Term:
FOB, CFR, CIF
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Material:
Powder
Port Of Loading:
Qingdao Port, China, Shanghai Port, China, Tianjing Port, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
Qingdao Port, China, Shanghai Port, China, Tianjing Port, China
Certificates:
CE, CO, FORM E, SGS certificate
Product descriptions from the supplier
Ce Cat Dog Food Processing Machine Line
A highly efficient, precision-engineered solution for the production of premium quality pet food pellets.
Product Features
Widely applied product with mature technology. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation. The granulating room is equipped with air suction temperature reducing system.

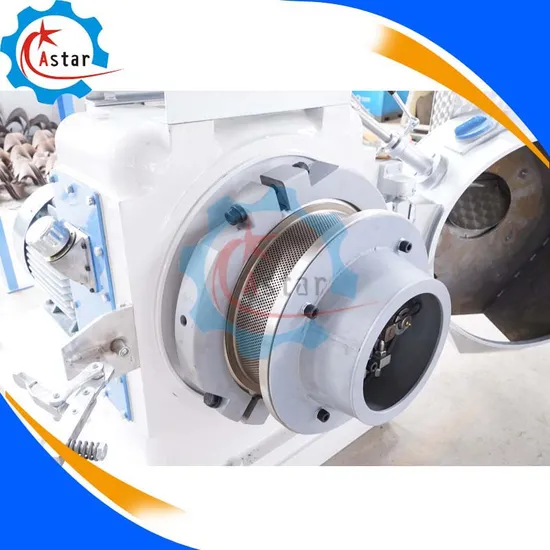

The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles. Ring dies with multiple kinds of bore diameters are optional and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high.
International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
Technical Parameters
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
|---|---|---|---|---|---|
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300×1000×2100 mm | 3200×1100×1700 mm | 3200×1300×1900 mm | 3500×1300×2800 mm | 3500×1500×2900 mm |
Output Quality & Operating Conditions
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) - ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC

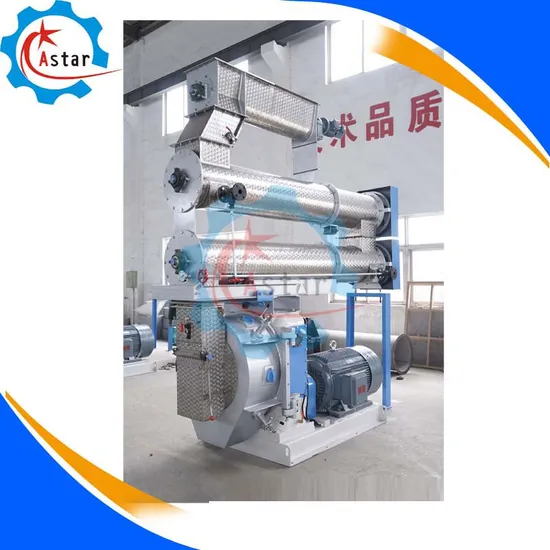

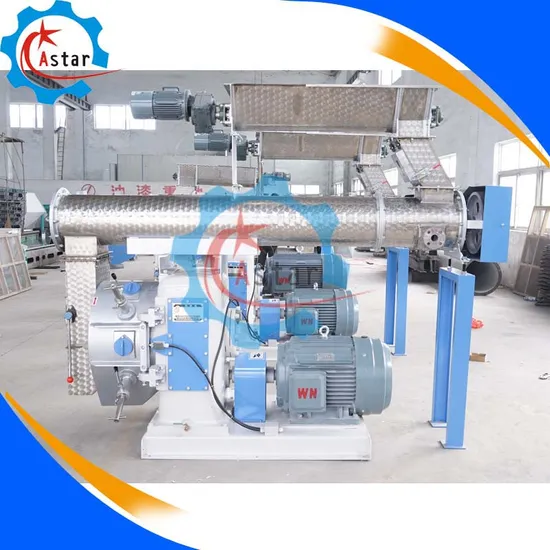

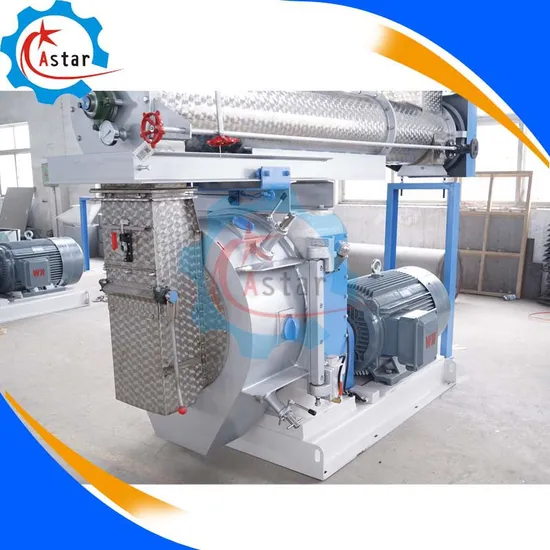

Machine Delivery & Application
