3HP-44HP Medium and Low Temperature Cold Storage Cooling Equipment Air Cooled Compressor Condensing Unit

Low-temperature quick-freezing is the key to long-term high-quality preservation of food. Rapid cooling can make food quickly pass through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall, and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~ -35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down quickly and the preservation effect is good.

We need to know this information! Because the cold room is customized, we design the cold room according to the customer's remand. So, we want to know more about your project.

3D show 3D design. We can make 3D renderings for each customer based on the detailed parameters provided by the customer, so that the customer can intuitively view the actual construction effect and avoid any errors.

1. Cold Room Panels For Cold Room
Good waterproof performance, Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture absorption, and the wall surface will also seep. Good sound insulation. The porosity of the polyurethane material is stable and basically closed-cell structure, which not only has excellent heat preservation performance but also has resistance to freezing and thawing and sound absorption. Strong resistance to deformation, not easy to crack, stable, and a safe finish. Fire retardant and high-temperature resistant. Polyurethane is a flame-retardant, self-extinguishing material after adding flame retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.

Product Name: PU sandwich panel
Surface Material: color steel (PPGI), stainless steel, aluminum
Core material: Polyurethane foam
PU density: 45±2KG/m3
Fire grade: B2
Width: standard width 1000mm, maximum 1050mm
Length: Customized, maximum 11980mm
Thickness: 50/75/100/150/200mm

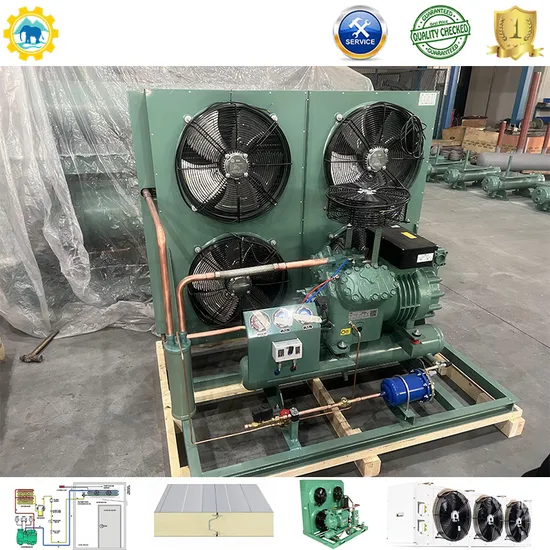

2. Condensing Unit For Cold Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for the neighborhood.

3. Evaporators For Cold Room
Dimension : Length(m)×Width(m)×Height(m) / FT
Refrigeration unit/Condsenor unit : Famous Brand etc
Refrigeration type/Air cooler/Evaporator : Air-cooled/water-cooled/evaporation cooled
Refrigeration : R22,R404A,R407C,R507a Refrigerant
Defrost Type : Electric defrosting
Voltage : 220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional
PU Panel : New material polyurethane insulation panel, 45 kg/m³
Panel thickness : 50mm,75mm,100mm,150mm,200mm
Type of door : Hanged door, sliding door,double swing electric sliding door,truck door
Temp of room : -60°C~+20°C optional/Customization
Fittings : All necessary fittings are included,optional
Place to assemble : Indoor/outdoor (concrete construction building/steel construction building)

1. Can you customize the cold storage room dimensions and temperature?
Yes, we can customize the cold room dimensions and temperature according to your requirements. Any size will do. If you have no idea, please tell me the total amount of your cargo, and our engineer can design it for you.

2. Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.

3. What brand of compressor can you offer?
Normally, with the original Bizter and Copeland compressors. Famous in the world.

4. How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 working days. Time will be shorter if you are in a hurry.
