High-quality 70HP Air Cooled Condensing Unit with Screw Compressor for Seafood Cold Storage supplied by Jiangsu Zhexue Cold Chain Equipment Co., Ltd.. Bulk wholesale pricing ranges from $2,890 to $28,900 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Minimum Order Quantity:
1 Set
Specification:
2300*1500*1600mm
Material:
Cast Iron
Place Of Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Related products for Industrial Machinery & Equipment
Automatic Dog Food Processing Machinery Plant Pet Dog Treats Process Line Machines Equipment
$29,500 - $30,000
Min. order: 1 Set
CE Approved with Pet Two Stage Linear High Speed Automatic Blow Molding Machine
$100,000 - $350,000
Min. order: 1 Piece
Fd30s Automatic Servo Injection Blow Molding Machine for 2ml 2000ml Plastic Bottles
$30,000 - $34,000
Min. order: 1 SET
Plastic Pet 500ml Round Pesticide Bottle Blow Molding Machine TONVA 3.8*2.0*2.0 1Y
$12,000 - $16,000
Min. order: 1 Set
Specifications
Minimum Order Quantity:
1 Set
Specification:
2300*1500*1600mm
Material:
Cast Iron
Place Of Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Port Of Loading:
Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Air Condensers, Chilling Equipment, Condensing Units, Evaporators
Year Established:
2017-10-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
100
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001:2015, Others
Product descriptions from the supplier

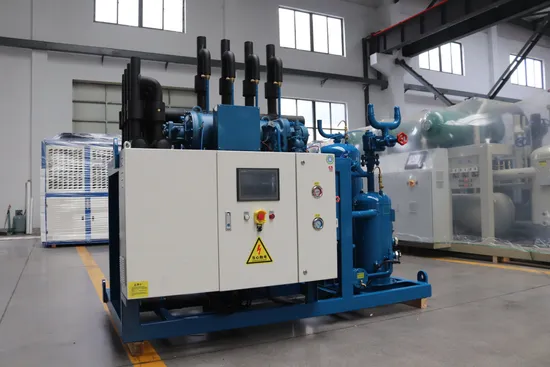

Zhexue MFRLGF Series
Reliable Low Temperature Condensing Units with Frascold Screw Compressors
Power, Performance, and Precision for Ultra-Low Temperature Applications
The condensing unit with Frascold Screw compressor for low temperature room Zhexue brand MFRLGF series products are applicable to the large size -50~-10ºC room temperature refrigeration system, such as the large size low temperature cold rooms, ice making, and blast freezing etc.
Key Features
1. Reliable system: famous brand compressor, PLC controller, high efficient oil separating system.
2. International famous brand low temperature screw compressor: high efficiency, long service life, tiny vibration, and low noise.
3. World famous components: protection devices for compressor wrong direction, overheat, overload, over discharging temperature, low oil level, over high/low pressure of oil flow etc.

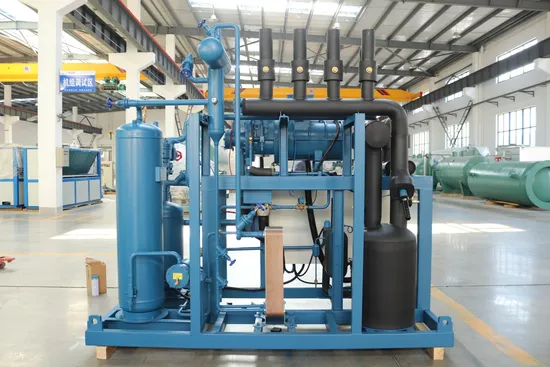

4. Efficient operation with economizer: the unit is matched with an economizer, which can effectively increase the capacity for low temperature operation.
Model Description & Configuration
Model Description: M BZ LG F 2 - S 100 / J Y
M: MEOJILE products
BZ: Compressor brand (BZ: Bitzer, HZ: Hanbell, FS: FUSHENG, RF: Refcomp, FR: Frascold)
LG: Compressor type (LG: screw, BF: piston, WX: scroll)
F: Condensation mode (F: evaporation cooling/air cooling, S: water cooling)
2: Compressor QTY
S: Double stage semi hermatic /: Single stage semi hermatic
100: Compressor motor rated power(HP)
J: Temperature (H: high temp. +5~+20ºC, M: middle temp. -10~+5ºC, L: low temp. -30~-10ºC, J: blast freezing -50~-30ºC)
Y: Polyester oil /:Mineral oil
Main Components
Compressor, condenser, pressure controller, pressure oil gauge, pressure sensor, filter vat filter core, liquid angle valve, accumulator, suction check valve, oil separator, oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, filter, oil dry filter, filter core, solenoid valve, economizer, sight glass, expansion valve, touch screen, LP sensor, PLC controller, Siemens HMI.
Specifications
Condensing unit with one Frascold screw compressor
| Model | Cooling Capacity (kW) @ -25ºC | Power Input (kW) @ -25ºC | Cooling Capacity (kW) @ -42ºC | Power Input (kW) @ -42ºC |
|---|---|---|---|---|
| MFRLGF-30(L)JY | 51 | 27.8 | 23.8 | 24.2 |
| MFRLGF-40(L)JY | 60.9 | 32.2 | 29.2 | 27.1 |
| MFRLGF-50(L)JY | 69.1 | 36 | 33.1 | 29.1 |
| MFRLGF-60(L)JY | 92.1 | 69.8 | 43.9 | 40 |
| MFRLGF-70(L)JY | 105.9 | 54.3 | 49.8 | 43.8 |
| MFRLGF-80(L)JY | 122 | 61.2 | 59.2 | 50.9 |
| MFRLGF-90(L)JY | 136.8 | 70.4 | 65.2 | 56.8 |
| MFRLGF-100(L)JY | 155.8 | 77.7 | 74.4 | 63.3 |
| MFRLGF-110(L)JY | 165.2 | 83 | 79.5 | 68.6 |
| MFRLGF-125(L)JY | 195.1 | 93.4 | 91.9 | 80 |
| MFRLGF-160(L)JY | 230.7 | 117.8 | 109.6 | 101.2 |
