Barrel Pump Refrigerant Supply System for Condensing Unit for Cold Storage
1 Set
$2,8901 Set
$3,200Product information
High-quality Barrel Pump Refrigerant Supply System for Condensing Unit for Cold Storage supplied by Jiangsu Zhexue Cold Chain Equipment Co., Ltd.. Bulk wholesale pricing ranges from $2,890 to $3,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Minimum Order Quantity:
1 Set
Specification:
3700*2100*3600mm
Material:
Cast Iron
Place Of Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Related products for Industrial Machinery & Equipment
Automatic Dog Food Processing Machinery Plant Pet Dog Treats Process Line Machines Equipment
$29,500 - $30,000
Min. order: 1 Set
CE Approved with Pet Two Stage Linear High Speed Automatic Blow Molding Machine
$100,000 - $350,000
Min. order: 1 Piece
Fd30s Automatic Servo Injection Blow Molding Machine for 2ml 2000ml Plastic Bottles
$30,000 - $34,000
Min. order: 1 SET
Plastic Pet 500ml Round Pesticide Bottle Blow Molding Machine TONVA 3.8*2.0*2.0 1Y
$12,000 - $16,000
Min. order: 1 Set
Specifications
Minimum Order Quantity:
1 Set
Specification:
3700*2100*3600mm
Material:
Cast Iron
Place Of Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T
Port Of Loading:
Shanghai Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Air Condensers, Chilling Equipment, Condensing Units, Evaporators
Year Established:
2017-10-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
100
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO14001:2015, Others
Product descriptions from the supplier

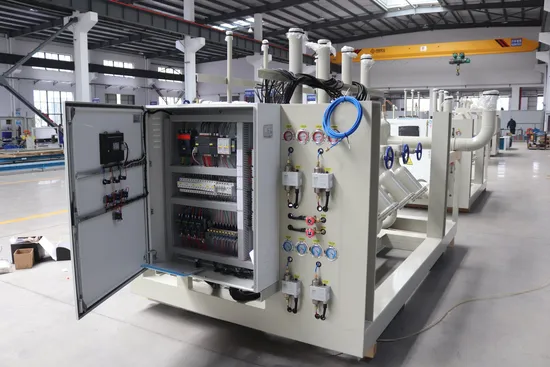

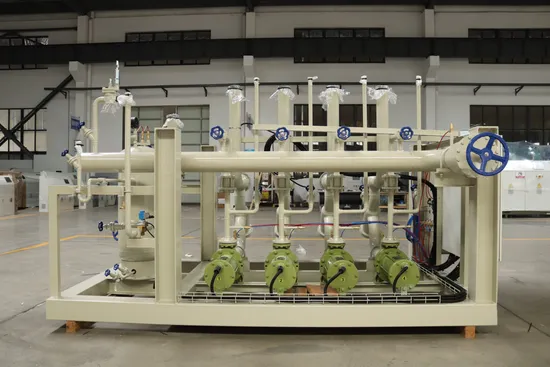

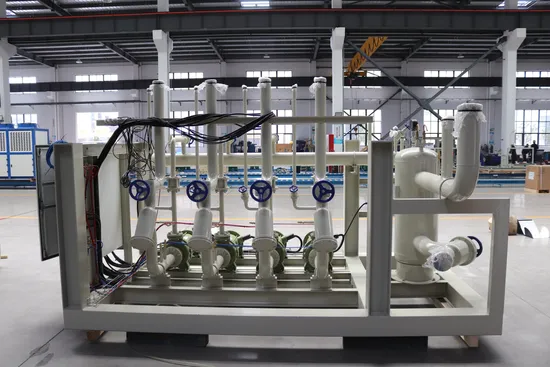

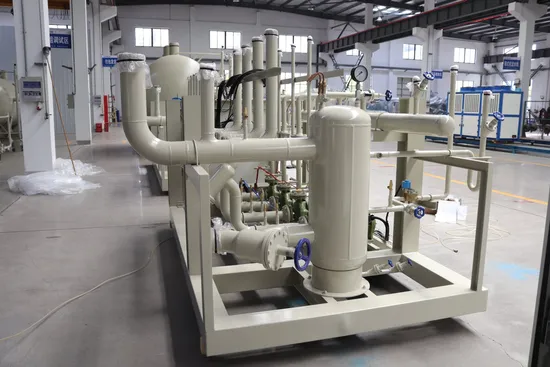

Barrel Pump Condensing Unit
High efficiency energy saving fluorine barrel type pump system is a refrigeration system utilizes pump principle, running by delivering liquid formal refrigerant into evaporator. The throttled low temperature refrigerant liquid, firstly enters a low pressure cycling barrel which has certain liquid storage space and gas-liquid separation space, then uses a fluorine pump pumping the low temperature liquid refrigerant which has several times larger volume than evaporation amount, into the evaporators in each cold room. Most of the liquid in the evaporator absorbs heat and turned into gas, the rest of the liquid goes back to low pressure circulation barrel through return pipe along with gas, after gas-liquid separation, the gas will be taken away by compressor, the liquid left together with newly added liquid which has a volume equivalent to refrigerant amount, are pumped back to evaporator to complete the recycling.
Features
- The system has good oil performance and is inertia to the stability of reservoir temperature.
- Evaporator has high evaporative heat transfer efficiency and good cooling effect.
- Through the regulating station, the defrosting of part of the cold room can be realized while most of the cold room continues the refrigeration cycle, simplifying the defrosting procedure of the evaporator and improving the efficiency.
- The cooling effect of the fluorine pump supply is about 25-30% higher than that of the direct expansion supply, which can ensure long-distance supply.
Main Components
- Fluorine Barrel Pump Unit Component: Sturdy metal frame, Heat insulation cushion
- Liquid Supplying Pipe Components: Liquid solenoid valve, Liquid filter drier with filter corn, Liquid ball valve, Liquid check valve
- Liquid Level Control: Photoelectric liquid level controller, Liquid level repair valves, Anti-frost liquid sight glass

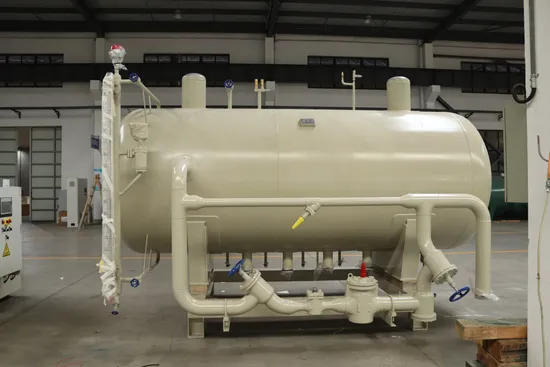

- Low Pressure Circulating Barrel: Barrel with safety valve, Liquid filter drier with filter corn, Oil return heat exchange, Double refrigerant pump (one use and one standby), Drain valve
- Electrical & Protection Assembly: Refrigerant pump differential pressure controller, Thermal protector, High-low liquid level sensor protector
- Optional Configurations: Refrigerant R22, R404A or R507 etc., Liquid level control type: photoelectric/mechanical/radar, Fluorine pump brand: Fileader, Hermetic, Liquid feeding type: solenoid valve, electrically operated valve
Specification
| Unit Model | Displacement (m³/h) | Pump Brand | Gas Inlet (mm) | Gas Outlet (mm) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|
| M-TB-1.5 | 780 | Hermetic or Fileader | 159 | 159 | 2096 | 1750 | 3100 |
| M-TB-2.0 | 780 | Hermetic or Fileader | 159 | 159 | 2730 | 1750 | 3100 |
| M-TB-2.5 | 1150 | Hermetic or Fileader | 219 | 219 | 2398 | 1850 | 3200 |
| M-TB-3.0 | 1150 | Hermetic or Fileader | 219 | 219 | 2866 | 1850 | 3200 |
| M-TB-4.0 | 1570 | Hermetic or Fileader | 273 | 273 | 2800 | 1900 | 3300 |
| M-TB-5.0 | 1570 | Hermetic or Fileader | 273 | 273 | 3520 | 1900 | 3300 |
| M-TB-6.0 | 2050 | Hermetic or Fileader | 325 | 325 | 3200 | 2100 | 3600 |
| M-TB-7.0 | 2050 | Hermetic or Fileader | 325 | 325 | 3700 | 2100 | 3600 |
| M-TB-8.5 | 2590 | Hermetic or Fileader | 325 | 325 | 3590 | 2250 | 4000 |
| M-TB-10 | 2590 | Hermetic or Fileader | 325 | 325 | 4260 | 2250 | 4000 |
| M-TB-12 | 3200 | Hermetic or Fileader | 325 | 325 | 4174 | 2300 | 4200 |
