Industrial Fruit Vegetable Juice Making Machine, Commercial Juicer, Sugarcane Juice Processing Machine, Pineapple Orange Juicer Extractor Machine for Sale

The Industrial Fruit Vegetable Juice Making Machine is a reliable, powerful, and professional-grade solution for juice extraction. Whether used in commercial environments or food production settings, this machine provides high performance for extracting juice from a wide variety of fruits and vegetables including sugarcane, pineapple, oranges, apples, and more.

• The motor drives the spindle to rotate through a pair of pulleys.
• The tripod is mounted on the spindle. The beater plate is on the tripod.
• The screen, funnel and slag are mounted on the lower bracket.
• The upper inner cylinder and the feeding hopper are loaded on the bracket, and the entire upper bracket is hingedly connected, and can be opened to check the quality of the pulp.

• Advanced design, compact structure and beautiful appearance.

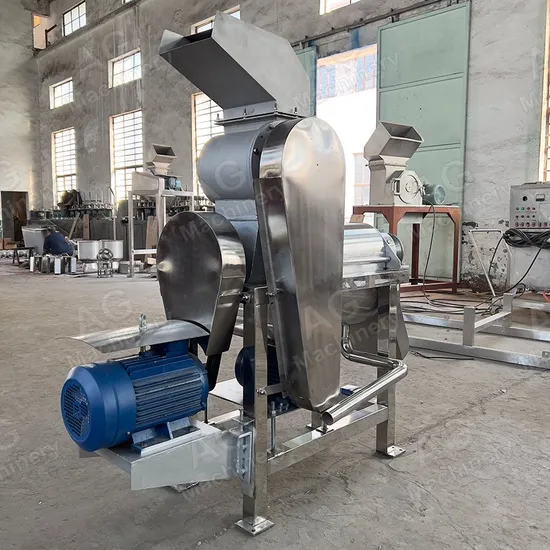

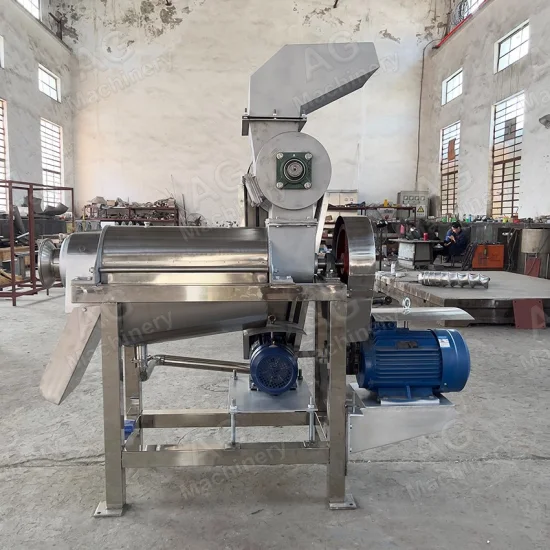

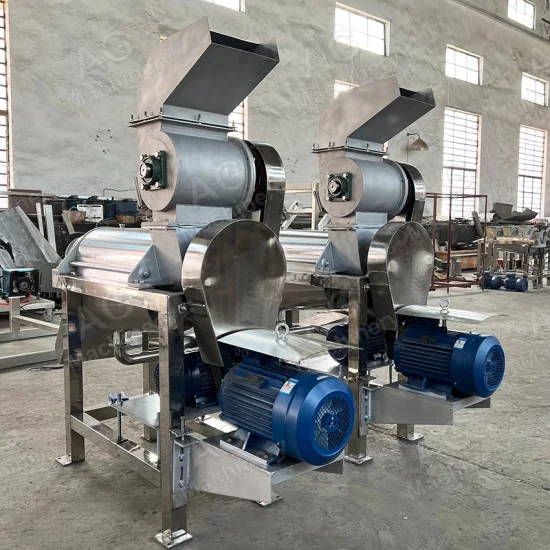

• The machine is composed of two parts: crusher and spiral juice extractor, which fully completes the process of crushing, juicing and slagging.
• The use of conical screw, large capacity, high juice yield.
• High efficiency, low noise, no pollution.
• The parts in contact with the materials are all made of stainless steel.

• It consists of front support, feed hopper, crushing, spiral, filter net, juice extractor, rear support, slag sump, etc.
• The left end of the spiral main shaft is supported in the rolling bearing housing, and the right end is supported by the hand wheel bearing.
• The motor is driven by a pair of V-belt drive screws.

• Stabilize the machine on the foundation and tighten the screws on the chassis feet.
• Open the cylinder, clean up the debris, and clean it. When cleaning, do not leak the water to the motor.
• Adjust the gap between the scraper and the inner wall of the screen to be 1.5~2mm.
• Adjust the spiral angle of the scraper.
• Check whether the spindle is flexible by hand, and tighten the upper cylinder screw.
• Before feeding, the skin of the thick skin should be peeled and seeds removed from large fruits.
• The fruits and vegetables to be processed must be cleaned.
• Turn on the power and test the juice extractor, check whether the spiral direction of the spindle is correct.

• The main component is the broken pulp, juice and skin entering the spiral juice extractor through the feeding hopper.
• The spiral diameter gradually increases and the pitch gradually decreases to form a press of the material.
• The material is pressed and the pressed juice flows through the filter into the bottom of the extractor; waste is discharged.
• The pressure regulating head adjusts the gap size which affects the resistance and efficiency of slag removal.
• The gap change alters the extrusion rate; if too small, some slag may seep through the filter.

• Used to squeeze pineapple, apple, pear and other fruits.
• For pressing tomatoes, ginger, garlic, celery and other vegetables.
• Spiral propulsion for efficient extraction.
• Fully automatic berry, pome fruit and vegetable juice extraction and slagging process.
• The parts in contact with materials are made of GB 304 stainless steel.
• The frame material can be selected based on customer requirements.
