Medium Temperature Units Wall-Mounted Monoblock Unit for Cold Storage

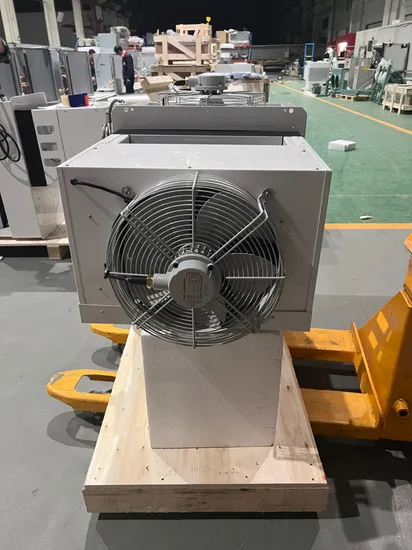

Company Exhibition A01W / A01T Series Monoblocks

Discover precision-engineered refrigeration solutions for cold storages with our A01W Wall Straddle and A01T Through Wall Monoblock series. Designed for versatility, efficiency, and reliability—bringing you state-of-the-art refrigeration in one compact form.

Product Description

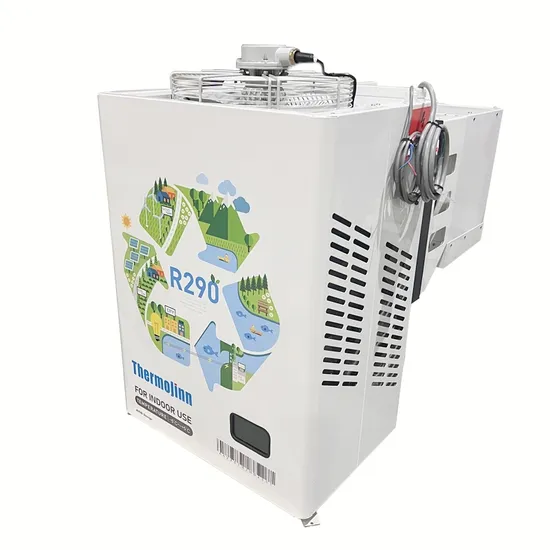

A01W Wall straddle Monoblock & A01T Through wall Monoblock applies to various cold storages. The unit can be installed on the wall and can be assembled with multi units stacked together. Cases of the Monoblock are with Epoxy sprayed steel plates. Hermetic piston compressors are applied, with R404A as the refrigerant.

Standard Configuration

• Low noise Hermetic compressor
• One time formulation casing for evaporator
• Auto defrosting system
• Condenser over-dirt alarm system
• Condensate water evaporation tray
• Expansion through capillary tube system
• Filter on the liquid line
• Cold room light and bulb
• Cable for door micro switch
• Cable for door switch heater on low temperature units
• High- and low-pressure switches
• Remote electronic control panel

Optional Accessories and Configuration

• Power supply: 230/1~/50, 400/3N~/50, 208-230/1~/60, 230/3~/50, 208-230/3~/60, 440-460/3N~/60, 440-460/3~/60, 108-115/1~/60
• Electrical accessories: Prearrangement for supervision system
• Accessories kit: Audible and visual alarm, Remote control panel for 2-3-4 units
• Condensation type: Air + Axial Fan, Air + Centrifugal fan, City water with pressure valve
• Winter Kit, low ambient temperature accessories: Crankcase heater + Condenser fan pressure switch + Double solenoid valve for defrosting
• Crankcase heater + Pressure-controlled condenser fan speed regulator + Double solenoid valve for defrosting

Product Parameters

Medium Temperature Arguments - A01W

Low Temperature Arguments - A01W

Medium Temperature Arguments - A01T

Low Temperature Arguments - A01T

Installation Guide

○ The installation of the A01W and A01T series mono block is installed on the wall.
○ The evaporator part is designed to be placed on the wall or through the wall.
○ The condensing part lays outside the cold room.
○ The unit must be positioned in an environment with good air circulation, away from high heat sources and away from obstacles that could limit the  possibility of good suction and equally good discharge of the treated air.

Frequently Asked Questions

1. How long is the delivery time?

It takes within 1 month from receipt of the deposit to preparation of the goods.

2. How long is the quality guarantee period?

The warranty period is 1 year, and the after-sales service is available 24 hours.

3. What is your price?

Our FOB price is based on quantity, material and size you required. The more machines you order, the lower price we will give! Also CIF CNF price is the same.

4. What can you do for us?

All material/ size are available, also we can customize products as your requirements.
